Technology that Delivers Peak Performance

checkmark iconInnovation

The fastest selling platform press in narrow web history was developed with Business Responsive Technology to address your needs and impact your bottom line.

checkmark iconStability

Over 800 worldwide installs place Mark Andy as a dominant force, stable provider and servicing authority of flexographic printing solutions.

checkmark iconIntelligence

Mark Andy AI packages support Industry 4.0 demands for enhanced automation.

checkmark iconPrecision

360-degree registration adjustment and controlled ink densities produce high quality dots in a simple and repeatable fashion. Maintain your quality job to job, year over year, even in different production facilities.

checkmark iconSupport

With the largest global service team in the industry, you are supported by Mark Andy to succeed. Beyond technical assistance, we offer our partners business development consulting, application expertise, and all the parts and consumables needed from a true Total Solutions Partner.

A Result of Passionate Engineering and Innovation

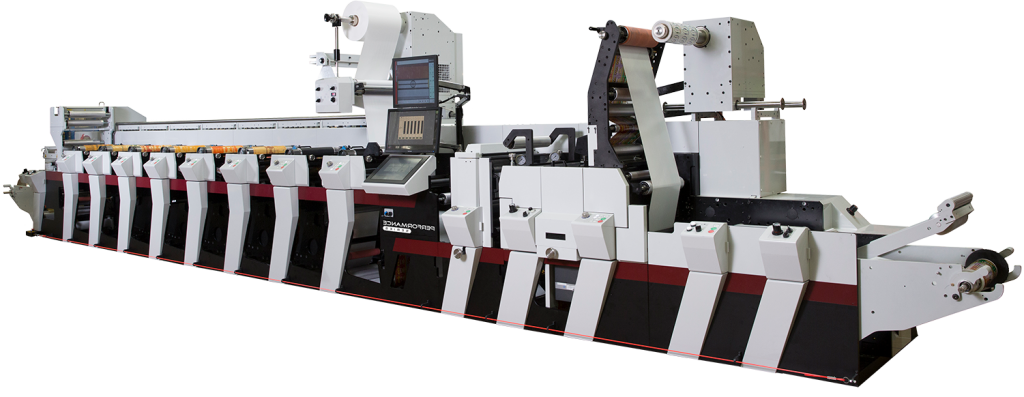

Performance Series P7
Performance Series P7
Performance Series P7
Performance Series P4
Performance Series P3

P9E Technical Specifications

Web Width

10/13/17/20/22/26 inch (250/330/430/508/558/660 mm)

Max Speed

1000 fpm (305m/min) with high speed configuration

Substrate Range

0.5 mil - 18pt (12-450 micron)

Print Repeat Range

5.5-24 inch (140-610mm)

Die Repeat

24 inch max (610mm max)

Unwind Capacity

40 inch (1016mm)

Rewind Capacity

40 inch (1016mm)

P7E Technical Specifications

Web Width

10/13/17/20/22 inch (250/330/430/508/558 mm)

Max Speed

1000 fpm (305m/min) with high speed configuration

Substrate Range

0.5 mil - 18pt (12-450 micron)

Print Repeat Range

5.5-24 inch (140-610mm)

Die Repeat

24 inch max (610mm max)

Unwind Capacity

40 inch (1016mm)

Rewind Capacity

40 inch (1016mm)

P5E Technical Specifications

Web Width

10/13/17 inch (250/330/430 mm)

Max Speed

750 fpm (230m/min)

Substrate Range

0.5 mil - 14pt (12-356 micron)

Print Repeat Range

5.5 - 24 inch (140-610mm)

Die Repeat

24 inch max (610mm max)

Unwind Capacity

40 inch (1016mm)

Rewind Capacity

40 inch (1016mm)

P4 Technical Specifications

Web Width

10/13/17 inch (250/330/430mm)

Max Speed

750 fpm (230m/min)

Substrate Range

2 mil - 12 pt (50-305 micron)

Print Repeat Range

5.5 - 24 inch (140-610mm)

Die Repeat

24 inch max (610m max)

Unwind Capacity

40 inch (1016mm)

Rewind Capacity

40 inch (1016mm)

P3 Technical Specifications

Web Width

10/13/17 inch (250/330/430mm)

Max Speed

750 fpm (230 m/min)

Substrate Range

2 mil -14pt (50-360 micron)

Print Repeat Range

5.5-24 inch (140-610 mm)

Die Repeat

24 inch max (610mm max)

Unwind Capacity

40 inch (1016mm)

Rewind Capacity

40 inch (1016mm)

Complex Printing with Value-Added Enhancements

The Mark Andy Performance Series is industry-recognized for its versatility. Supporting the widest array of applications and substrates, the press is a smart investment in your printing operation.

  • Food and Beverage icon Bottle Wraps
  • Film icon Film (Supported & Unsupported)
  • Labels icon Prime Labels
  • In Mold icon In-Mold Labels
  • Lidding icon Lidding
  • Light Carton icon Light Carton
  • Durables icon Durable Industrial
  • Roll Fed icon Roll-fed Labels & Wraps
  • Shrink icon Shrink Sleeves
  • Promotional Tags icon Tags & Tickets
  • Extended Content icon Extended Content Labels
  • Flexible Packaging icon Flexible Packaging
