VLI Features

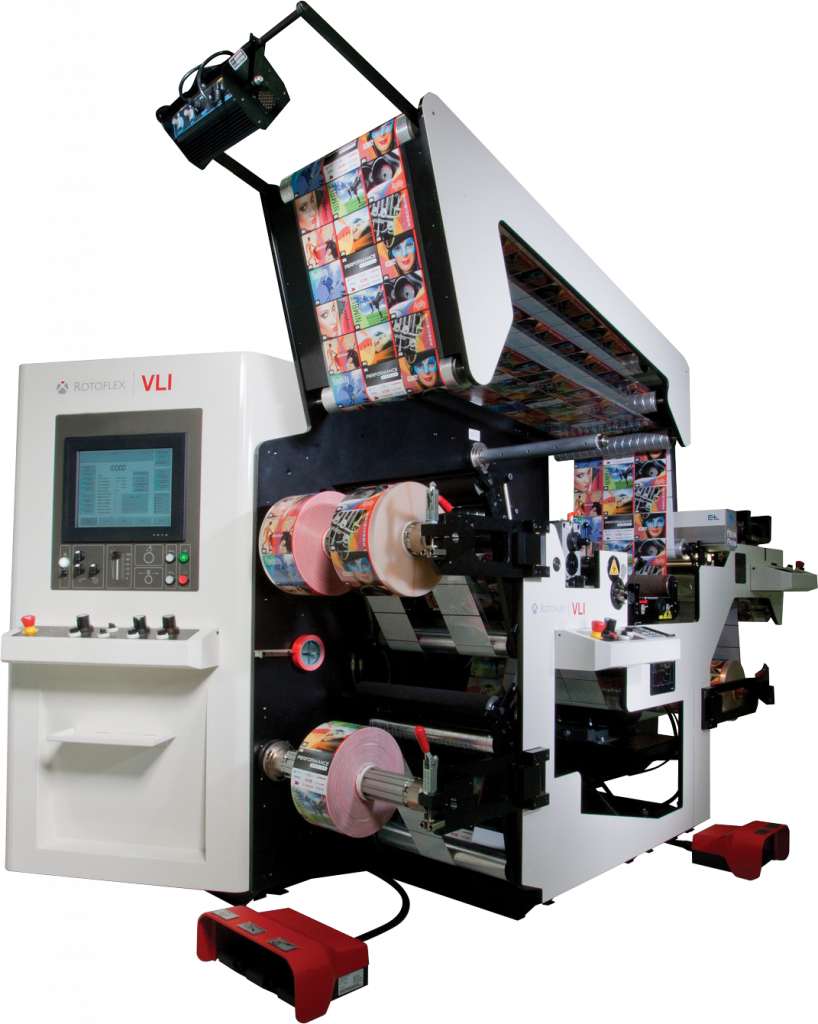

The Rotoflex VLI redefines the film rewind machine to meet changing and more challenging needs. From its ground-up redesign, well-defined attributes reduce the cost of output while improving operator control and comfort. Key features include

checkmark iconIntuitive Controls

Optimized for ultimate operator efficiency
Large, 15" easy-access touch-screen display
Ideally-placed auxiliary controls and tool pockets

checkmark iconLean & Efficient Web Paths

Improved access to web path maximizes set-up and improves changeover
Versatile web path allows fault placement in multiple locations
Easy vision system integration, standard on most configurations

checkmark iconModular Design with Lower Profile

Lower overall working heights provide easy-access
Lower splice table and slitter more comfortable, reducing operator fatigue and increasing output
Modular unwind design is expandable for future configurations/applications

VLI Technical Specifications

Web Width

13.25/17.25/20.25/24.25/28.25 inch
(330/440/500/600/700 mm)

Max Speed

2000 fpm (616 mpm) dependent on application

Web Width

24 inch (610 mm)

Max Unwind Diameter

30 inch (762 mm)

Options

Crush, Shear, or Razor Slitter
Slitter Cartridge
Web Gripper-feeder
Dual Rewind
Layon/Ironing Rollers
Waste Wind-up
Closed Loop Tension Control
Active Static Eliminator
Variable Data Printing
Multi-Lan Counting
Clear-on-Clear Label Count
High Intensity Strobe
Gap-control Rollers
Slip-differential Shafts
40 inch (1016 mm) Unwind Stand with Lift
Roll Lift for Onboard Unwind
Multiple Web-guiding Systems
Shroud for Inspection Area
Flag and Splice Detection
Matrix and Missing Label Detection
Complete Range of Inspection Systems
