Fast, Simple and Precise Offline Inspection and Finishing In Your Press Room
Key Benefits Finishing speed 3x faster than comparable machines, short-web path for high-productivity, and quick change for increased throughput
Quick set-up, dynamic operation, remote monitoring and support, easy HMI touchscreen, and job save
Highly accurate semi-rotary, ideal for 80% of label converters
Low up-front capital investment promotes faster ROI and an easier path to enhanced finishing capabilities
Standard Features User-friendly operator interface with exclusive Servo-URC 2.0 drive system
Web width 13.5 inches (340 mm)
Maximum speed full rotary die cutting 750 fpm (228 mpm)
Maximum speed semi-rotary die cutting 250 fpm (76 mpm)
UV curing and drying system
Single station
DF1 Features
All-in-one finishing and converting machine In a single step, decorate, die-cut, slit, and strip labels to get product out the door faster than ever.

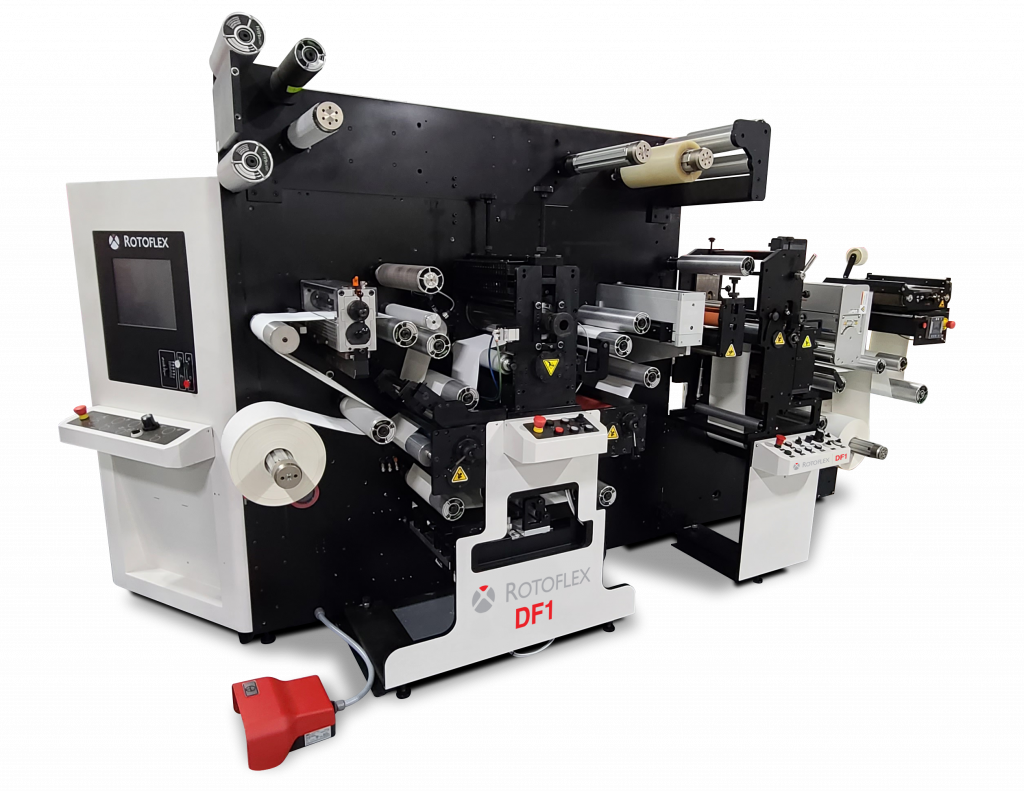

Fast die cutting speed Rotoflex DF1 is the fastest semi-rotary offline digital converting solution for single path embellishments, allowing you to take your digital label production to the next level.
Simple configuration, operation, and monitoring With a single hybrid station, converters can quickly and easily set up the machine and let it do its job.
Unmet semi-rotary precision Your final product turn out perfect with no extra effort from you.
Technical Specifications
Drive System
Servo URC 2.0
Web Width
13.5 inches (340 mm)
Speed
Full Rotary: 750 fpm (228 mpm)
Semi-Rotary: 250 fpm (76 mpm)
Die Mag. Cylinder Repeat Range
Full Rotary: 8.25 - 24 inches (290 - 609 mm)
Semi-Rotary: Up to 19 inches (482 mm)
Die Plate Repeat Range: Semi-Rotary
4 - 18 inches (101 - 457 mm)
Print Width
13 inches (330 mm)
Curing and Drying System
UV
Maximum Unwind Diameter
28 inches (711 mm)
Basic Configuration Machine Dimensions (LxHxD)
51.2 x 74.8 x 48 inches
(1300 x 1900 x 1220 mm)
Options
Cold Foil, Lamination
Spot Varnish Station
Dual Rewinds
Crush Knife, Shear Knife or Razor Slitting, or Underscore Slitting with Lateral Adjustment
