The True Hybrid Advantage

checkmark iconFully Integrated

Digital Series HD is a True Hybrid, meaning elements of digital and flexo within the machine are native to Mark Andy. What this means for you is a heightened user experience with a reliable partner. It is hardware and software designed to work together seamlessly to achieve unmatched benefits.

checkmark iconEnhanced Productivity

Printing at speeds up to 240 fpm (73 mpm), including white and combined with single pass inline converting, produces a higher throughput.

checkmark iconRevenue Generation

The combination of production speed, no click charges, and competitively priced consumables delivers the lowest total cost of operation with maximum return. Current users report $200,000 USD (€169,787.00) in weekly revenue.

checkmark iconFlexibility

Digital Series HD is now available in 5 through 8 color configurations and can support integrated inline or future-proof near line converting options. It’s custom designed to your exact digital workflow, printing, and converting needs with your growth path in mind.

checkmark iconGuaranteed Support

Our team provides comprehensive training through the entire product lifecycle: before, during, and after installation. Beyond technical assistance, the Mark Andy team will work with you to optimize internal processes and business development strategies around your new technology so you can generate more work and revenue with less time, labor, and waste.

Configurations for Every Converter, Now and into the Future

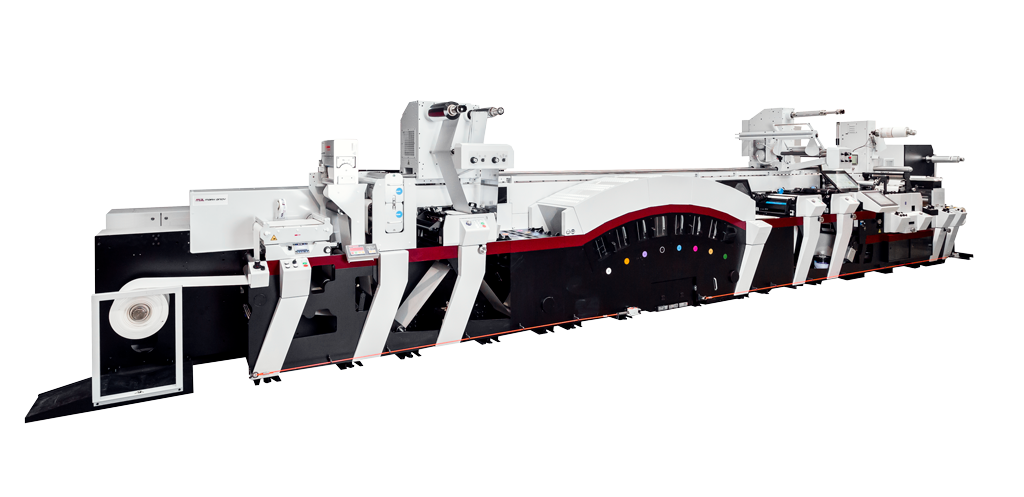

Digital Series HD 8 Color Digital Hybrid Press
Digital Series 5 Color Digital Hybrid Press
Digital Series HD 5 Color Roll to Roll Digital Hybrid Press

Technical Specifications

Web Width

13.25 inch (336mm) and 17.25 inch (438mm) web width
12.5 inch (318mm) and 16.8 inch (426mm) digital print width
13 inch (330mm) and 17 inch (430mm) flexo print width

Printing Process

Extended Gamut (CMYKOGV +W) UV inkjet digital printing with visible print quality of 1200 dpi

Start with 5 colors and expand the gamut as your business requires!

Hybrid flexo stations for top coating, metallics, cold foil and more


240 fpm (73 mpm) at-quality for all colors. No trade off in speed for high-opacity digital white.

Substrate Range

Pressure sensitive paper and film, unsupported paper and films, tag stocks, light carton and more


Workflow A true PDF automated workflow completely supported and configured by Mark Andy

Mark Andy ProWORX, powered by Esko and Global Graphics, includes a powerful color engine, expandable for your prepress needs

Live VDP™ is the fastest, most robust VDP solution in the industry.

Mark Andy ProVIEW operator platform provides access to all customized and standard system operations at a single intuitive touch-screen interface

Countless Customization Options

Supports 5 through 8 color digital module options

Match your existing workflow with integrated inline, nearline or offline converting options

Add any traditional flexographic converting, decoration or unique process in combination with extended gamut digital print

Offering Flexibility Like No Other

When it comes to digital, it’s about having the right technology with the right partner to help you reach your greatest potential. View our application gallery of prime labels and tags showcasing high quality print and embellishment. With the ability to support a wide range of applications and markets, Digital Series HD is a viable solution to grow and differentiate your label business.

  • Tactile icon Pressure Sensitive Prime Labels
  • Shrink icon Shrink Sleeves
  • Durables icon Durable Tags & Labels
  • Light Carton icon Light Carton
  • Variable Data icon Variable Data Printing
  • Specialty Labels Specialty Goods
  • Health and Beauty icon Health & Beauty Market Segment
  • Labels icon Industrial Labels
  • Film icon Film (Supported & Unsupported)
