Fast, Easy and Affordable Variable Data

Achieving high-speed basic variable data can be as simple as adding a low-cost and reliable portable solution to your new or existing machine.

checkmark iconCost-Effective

Inexpensive low-risk solution with high return, the DPV is more economical than similar offers in the market and is more dependable. This inkjet system costs nearly 90% less than cartridge-based systems.

checkmark iconFast

The DPV utilizes the latest 30 & 40 kHz print module with lightning-fast data transfer and print speeds without slowing down your equipment.

checkmark iconFlexible

A portable module that can be added to virtually any new press and retrofit project, as well as vacuum conveyor or rewinder, the DPV system is expandable from 4.5” up to 20” with multiple print heads. It also covers a wide range of applications, from tickets, tags & labeling to packaging, security printing, and pharmaceutical.

checkmark iconRobust

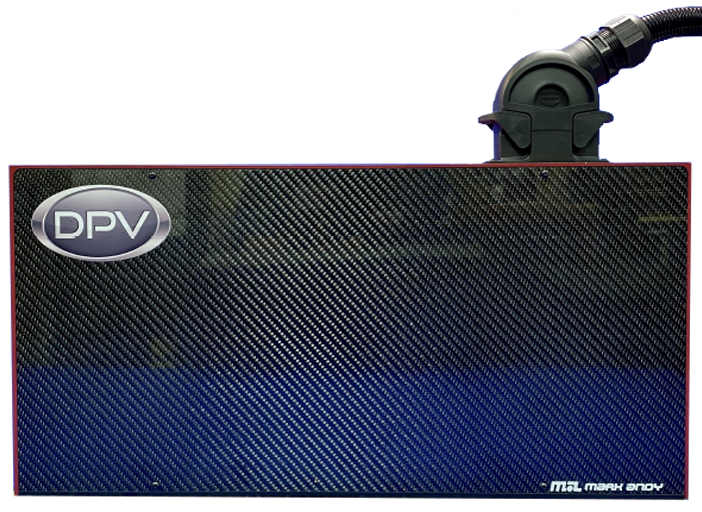

Mark Andy DPV is a sturdy single module with minimal moving parts and the best available DOD technology delivered by authentic Kyocera print heads, making it a permanent and robust solution for single-color variable data management.

checkmark iconOperator-Friendly

As a straightforward solution, the DPV is a practical and user-friendly device for all operators regardless of skill level. Automated maintenance and service features reduce maintenance and make any variable data printing job easier and successful in the pressroom.

Technical Specifications

Web Width

4.5"-20" (114 mm - 508 mm)

Print Resolution and Speed

600x900 dpi - 166 fpm
600x600 dpi - 250 fpm
600x450 dpi - 333 fpm
600x300 dpi - 500 fpm

Ink

UV black and spot colors

Drop Size

7pL - 14 pL adjustable

Substrates

Coated (UV) and uncoated paper, foil,
plastic, PVC, and chipboard

Curing System

UV LED

Power Requirements

Electrical: 110 to 220 VAC 50-60 Hz
Pneumatic: 50 psi (3.45 Bar) low flow. Air to be clean and dry.
PC: Uninterrupted Power Supply (UPS) is recommended for the computer. Not included.

Included Software and Controller

Windows Based PC
QPress Layout Software
Print Control Software
PDF Software is optional

Types of Barcode

USPS IMB, USPS Postnet, USPS IMPB
UPC A
Code 128, Code 39 / 3 of 9, Code 93
Interleaved 2 of 5
Data Matrix, Data Matrix GS1, Data Matrix / Harvest Mark
QR Code
Aztec
PDF 417
Codabar/NW-7
RSS
EAN 13 , EAN 8
SSCC 18
Custom Barcodes & Many More

Certification

CE compliant (component level)
